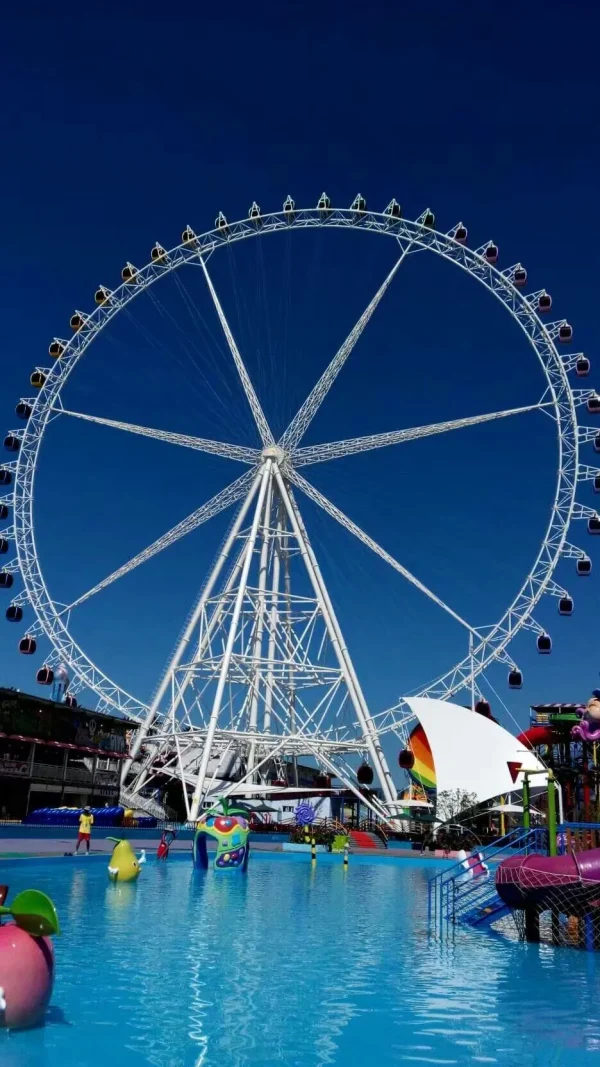

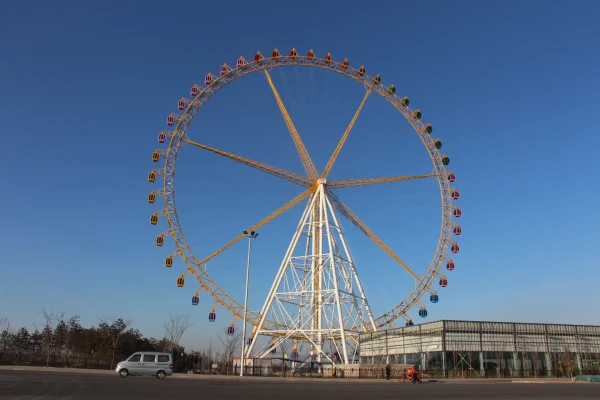

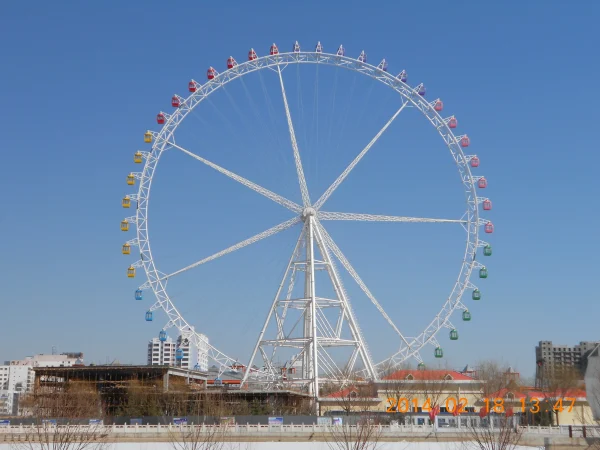

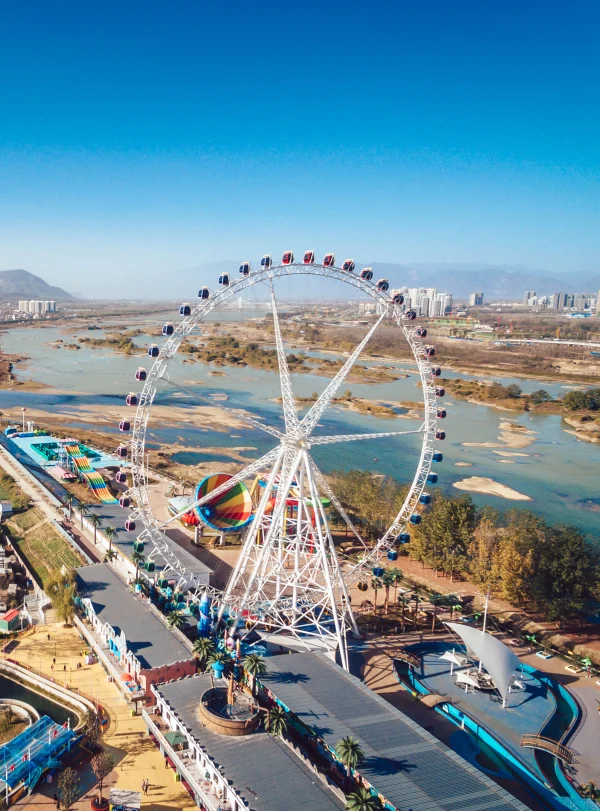

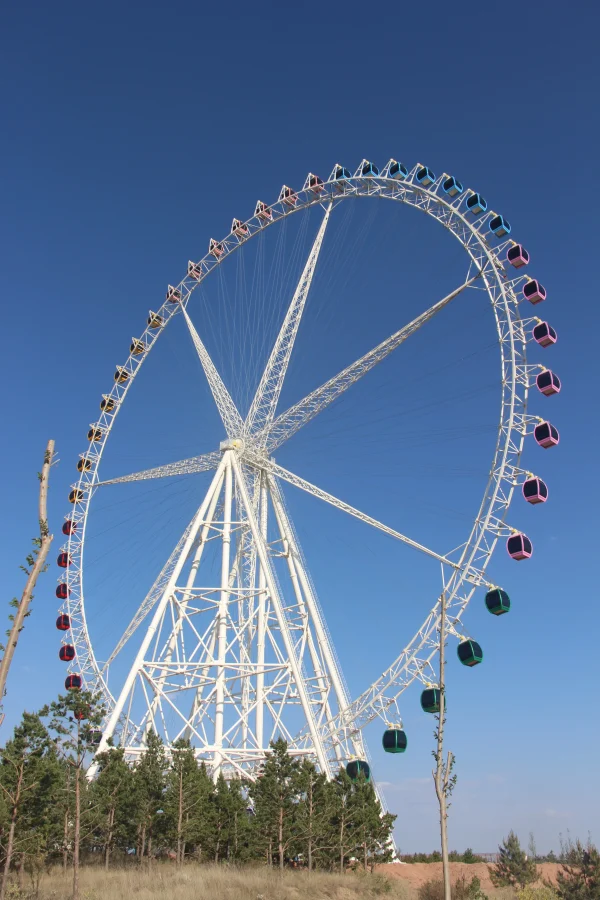

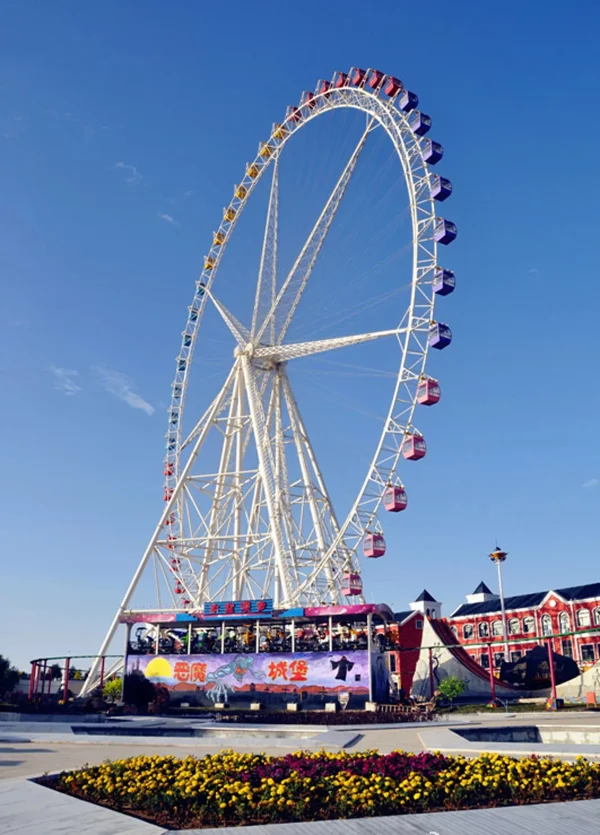

89m-Ferris-Wheel

🎡 Technical Parameters (Ferris Wheel)

• Product Name: 89m Ferris Wheel

• Model: GLM89A/B

• Power Supply: 3N+PE 380/220V

• Device Type: Observation Wheel

• Device Level: Grade A

• Driving Power: 48/37kW

• Installed Capacity: 170KVA

• Number of Cabins: 54 / 49

• Cabin Type: Standard Aluminum Alloy 6-Person Cabin

• Air Conditioning Power: 2.2kW per cabin (optional)

• Rated Capacity: 324 persons / 288 persons

• Device Height: 89m

• Operating Height: 83m

• Occupied Area: 42m × 37m

• Device Dimensions: 95m × 48m

• Turntable Diameter: φ77.8m

• Circumferential Speed: ≤0.25m/s

• Running Time: 18 minutes per cycle

• Structure Type: Truss / Arm Steel Cable

• Drive Mode: Hydraulic Drive

• Service Life: 25 years

🎡 Operating Conditions

• Temperature: -5°C to 40°C

• Humidity: ≤85%

• Altitude: ≤3000m

• Operating Wind Speed: <15m/s
